Endless Arc ES 165 Frames
Description

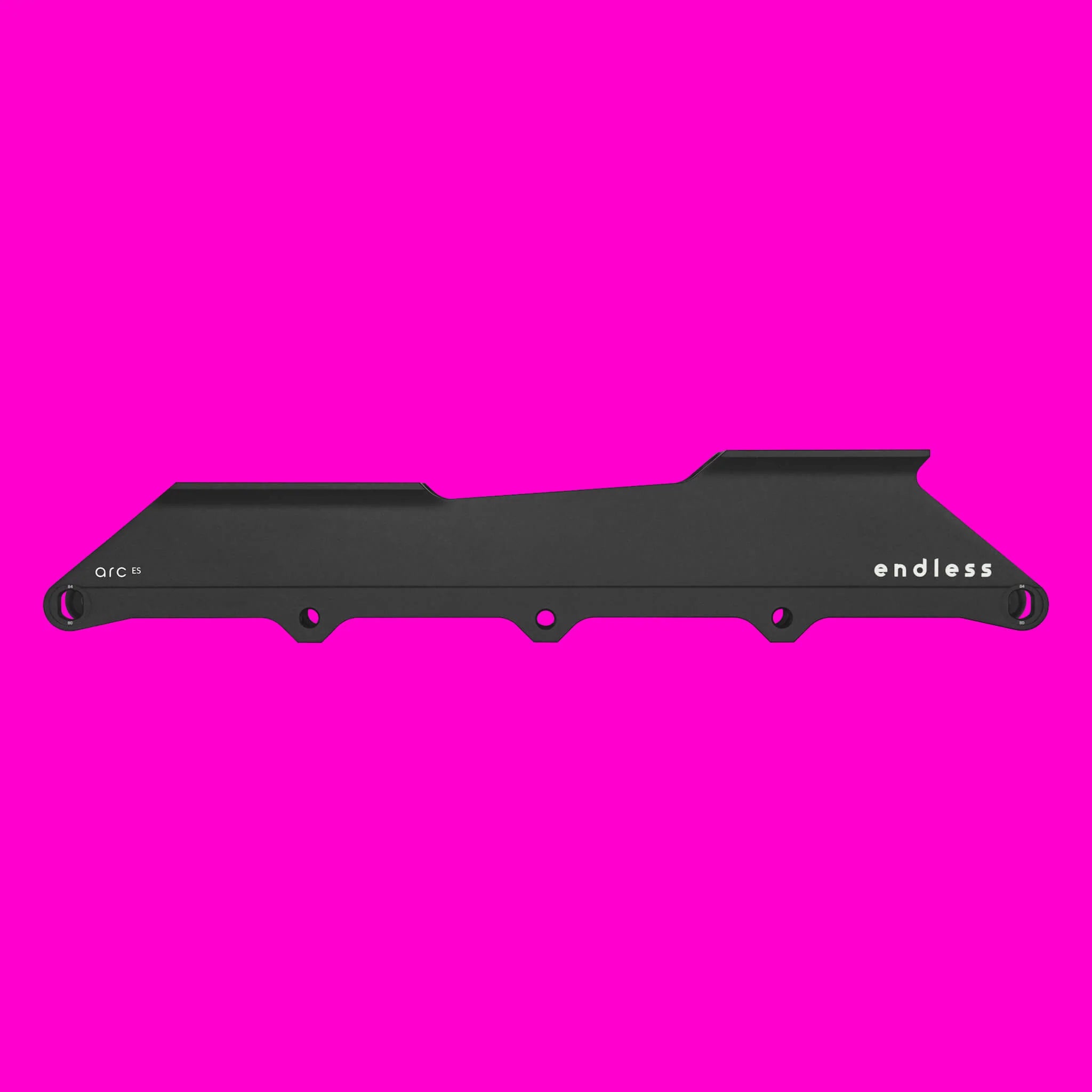

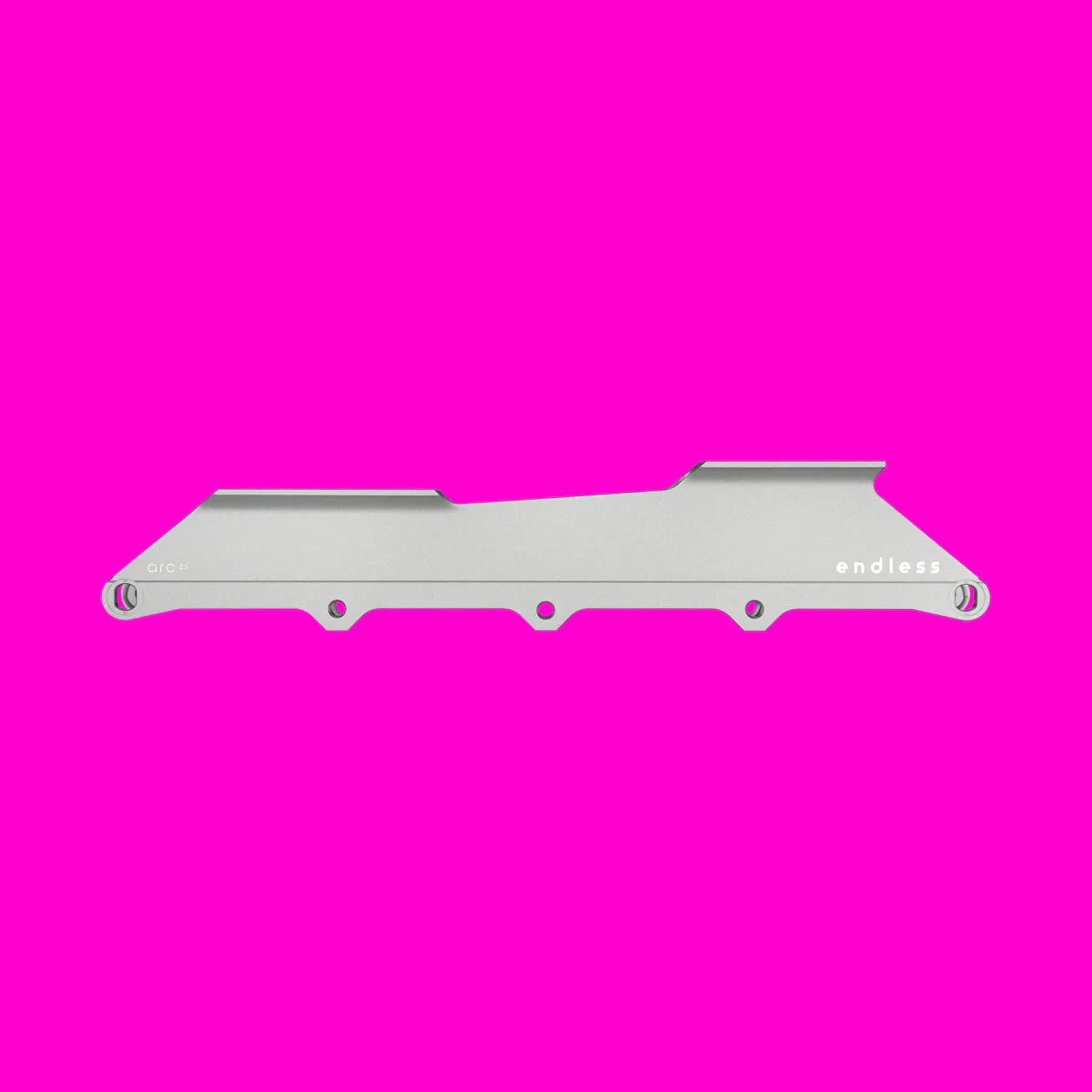

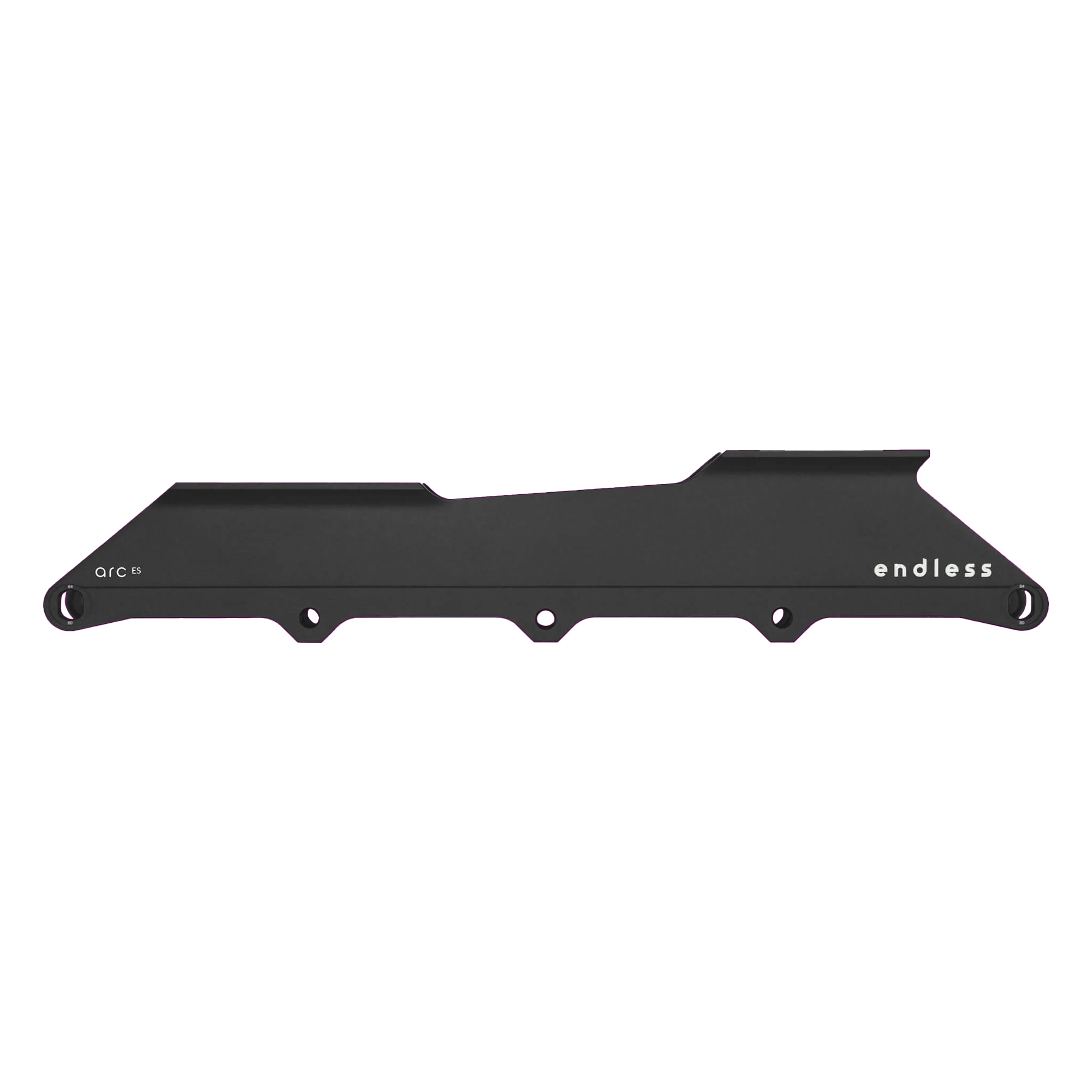

The Endless Arc ES 165 Frame is a precision machined, multi-setup 5-wheel frame specifically designed for skaters seeking the highest level of performance for expressive flatland styles that rely heavily upon precise edge transitions and ninja-like swivel moves. Through a meticulous development and testing process we have engineered a frame that we believe delivers an innovative level of 5-wheel performance for all 165 mount boots. An exceptionally rigid structural design brings new levels of responsiveness, speed, and acceleration that enhance the execution of moves and open up limitless skating expression...and most importantly, fun!
For the best skating performance and movement tempo, our 5-wheel frames should be chosen based on boot size as noted below.
- Multiple setups for maximum wheel compatibility and performance tuning
- 80 or 84 mm outer wheels + 3x 76 mm inner wheels
- For the best experience do NOT mix round and bullet wheel profiles.
- Arc Rocker
- Enhanced levels of rocker possible when using 80 mm wheels and optional Arc Deluxe Rocker Axles (silver)
- Optimized for game-changing responsiveness, speed, acceleration, and precise control of movement
- Higher performing alternative to 5x76 options
- Recommended for Intermediate and Advanced skill levels
- Recommended for boot sizes 44-47 EU
- For size 38-43 EU we recommend the standard version of this frame
- Mounting: 165, 180 mm
- Longitudinal mounting slots allow for optimized front-back alignment with Rollerblade and Adapt skates
- For centered mounting on FR/Seba boots and Micro MT Plus: push frame forward (bolt sits towards rear of slot)
- For centered mounting on Rollerblade or Adapt boots: push frame backwards (bolt sits towards front of slot)
- Lateral mounting slots allow for lateral adjustment on 7-hole mounts only, like FR1/2/3.
- Wheelbase: 324 mm
- Pivot spacing: 81 mm
- Brake compatibility: not recommended for use with a brake
- One frame set includes: 2 frames and axle hardware
- CNC-machined from 6061-T6 aluminum
- Weight = 377 grams, without spacers and axles
